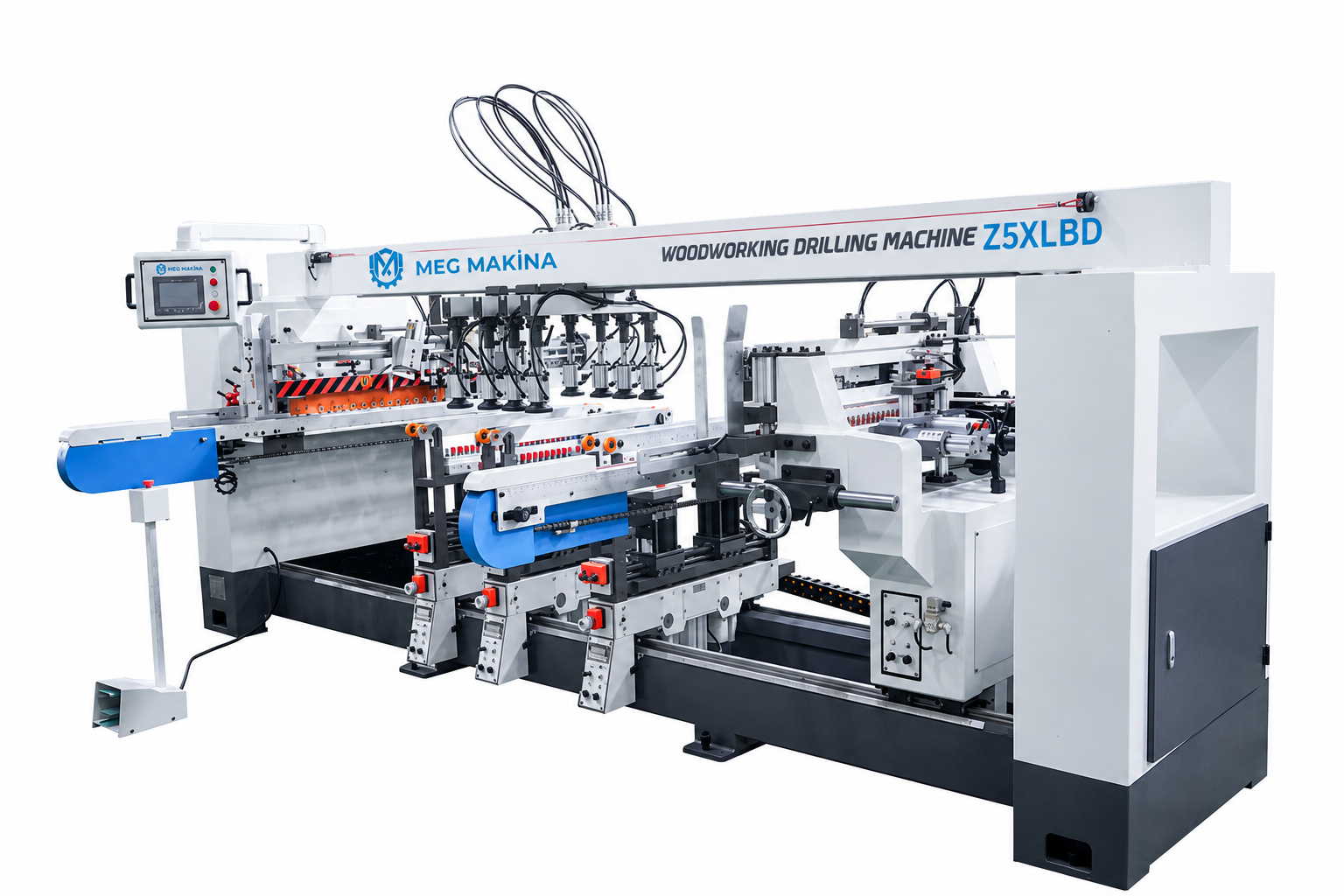

Model Z5XLBD Maximum drilling diameter
Max.=35mm (single drilling head)D=13mm（multi-drilling head）
Maximum drilling depth H Max.=60 mm Maximum processing hole distance Length*Width=1500*640 mm
Minimum processing hole distance Length*Width=245*50mm
Maximum processing time
1500 mm
Minimum processing time 245 mm
Total spindle count
110
Single board processing width
60-640 mm Processing speed Single board：6-13 pcs/min
Double board：12-26 pcs/min
Triple board：28-32 pcs/min
Efficiency 10-32 pcs/min Pressure 0.5-0.6mpa
Drilling joint mounting hole diameter 10 mm Drilling head assembly diameter 10 mm
Tool installation length 57mm/70mm Drilling row layout
Horizontal: 2 Vertical: 3
