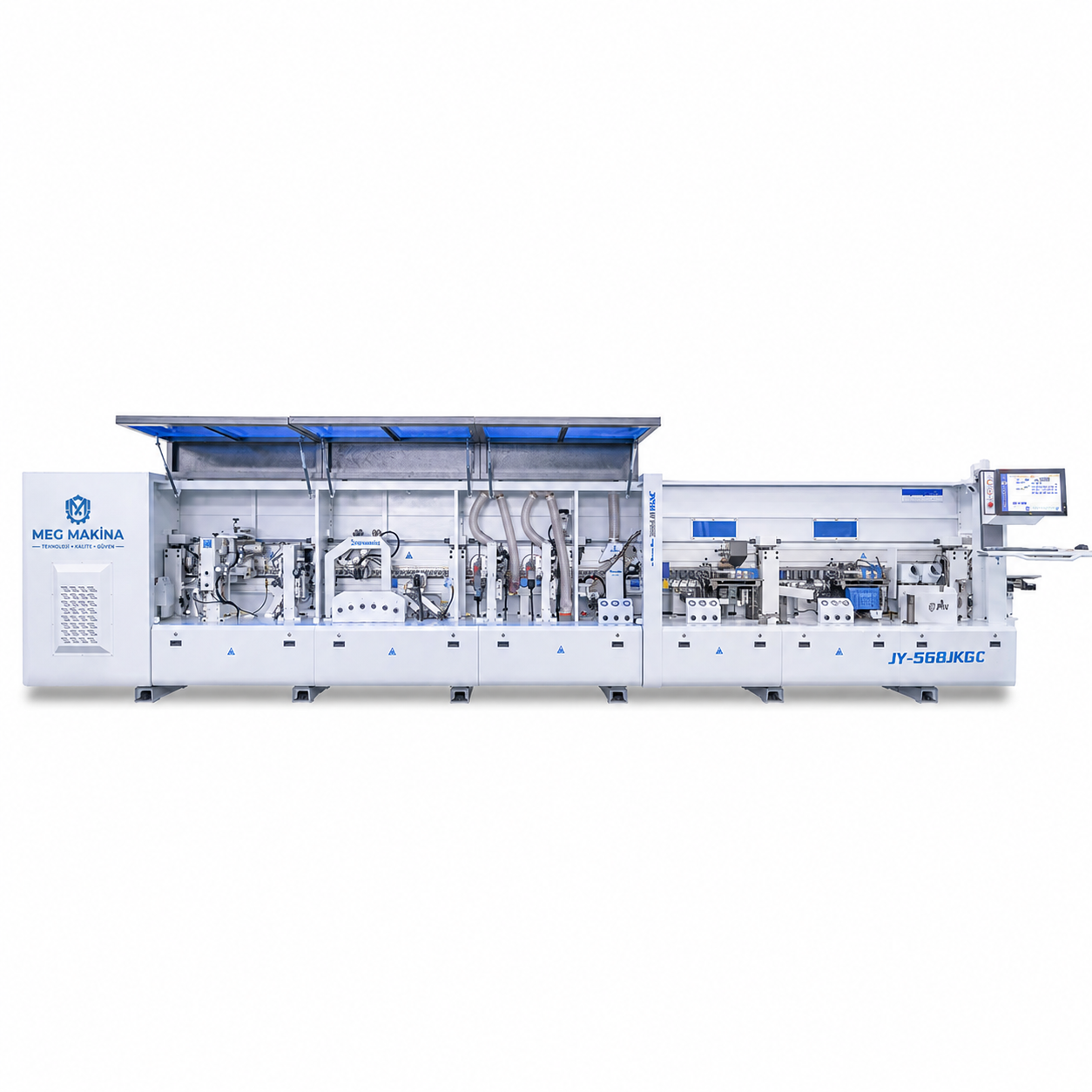

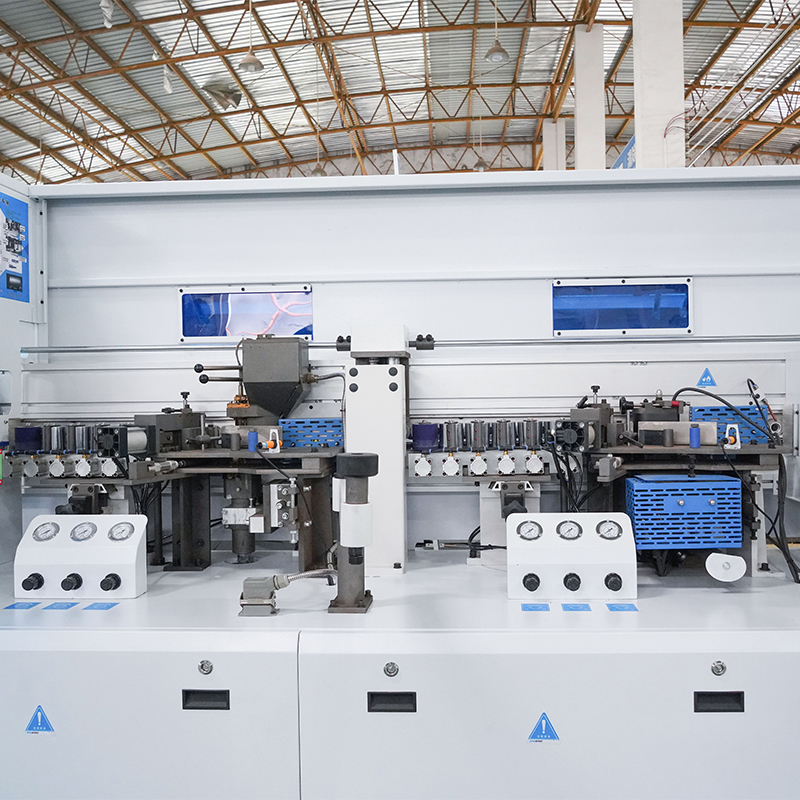

JY-568JKGC Automatic Edge Banding Machine with Pre-milling, Double Trimming, Double Glue Pot and Chamfering

The main functions of the JY568JKGC edge banding machine include

Release agent – Pre-milling – Gluing 1 – Pressing 1 – Heating lamp 1 – Gluing 2 – Pressing 2 – Heating lamp 2 – End cutting – Rough trimming – Fine trimming – Chamfering – Scraping – Flat scraping – Cleaning – Buffing 1 – Buffing 2. The edge banding machine can adapt to the production and processing needs of various panel furniture and meet the needs of different furniture manufacturers.

Model JY-568JKGC

Maşın Ölçüsü 8650*900*1580MM

İş təzyiqi

0.6Mpa

Ümumi Güc 23KVt

Qidalanma Sürəti

15-23 m/dəq

Elektrikli Lift 0.37KVt

Lövhənin qalınlığı

10-60 mm

Lövhənin uzunluğu

≧120 mm

Lövhənin eni

≧60 mm

Kənar Bantlama Lentinin Qalınlığı 0.4-3 mm

Application
