Maximum drilling diameter
Max.=35mm (Single drill bit)
D=13 mm (Multiple drill bits)
Processing length 175-1500 mm
Maximum drilling depth H Max.=60 mm Processing width 50-300 mm

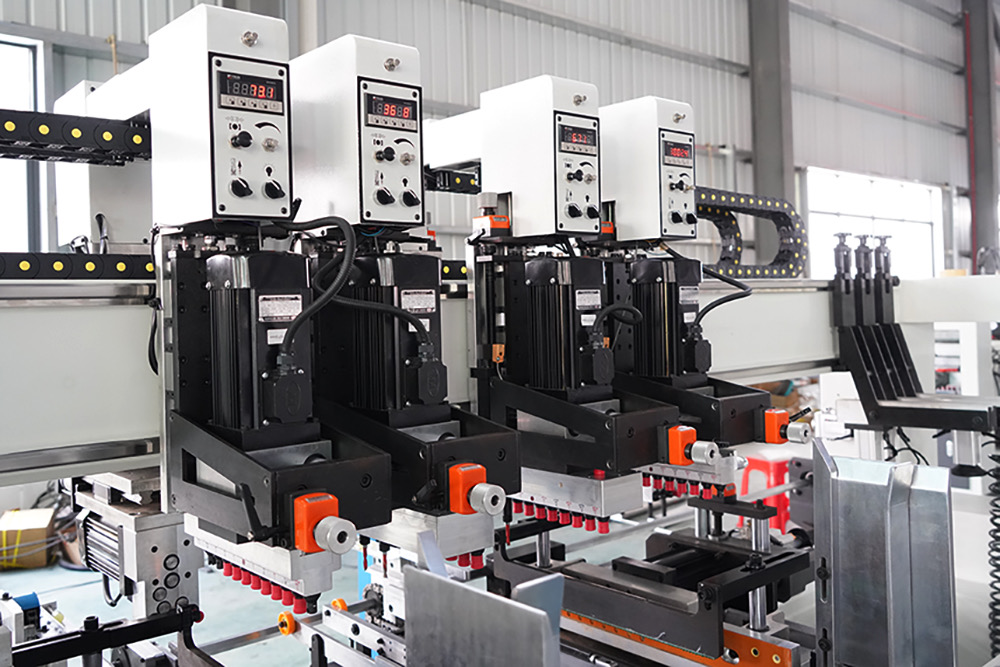

Top vertical boring row 4 rows Spindle speed 2840 rpm/min
Horizontal row 2 rows Total motor power 16.1kVt
Back row 3 rows Machine dimensions 4000*2500*2050mm
Number of spindles 11*4+11*2+3*3=75 Machine weight 3000 kg
Drilling joint mounting hole diameter 10 mm Packaging dimension 4200*2460*2500m
